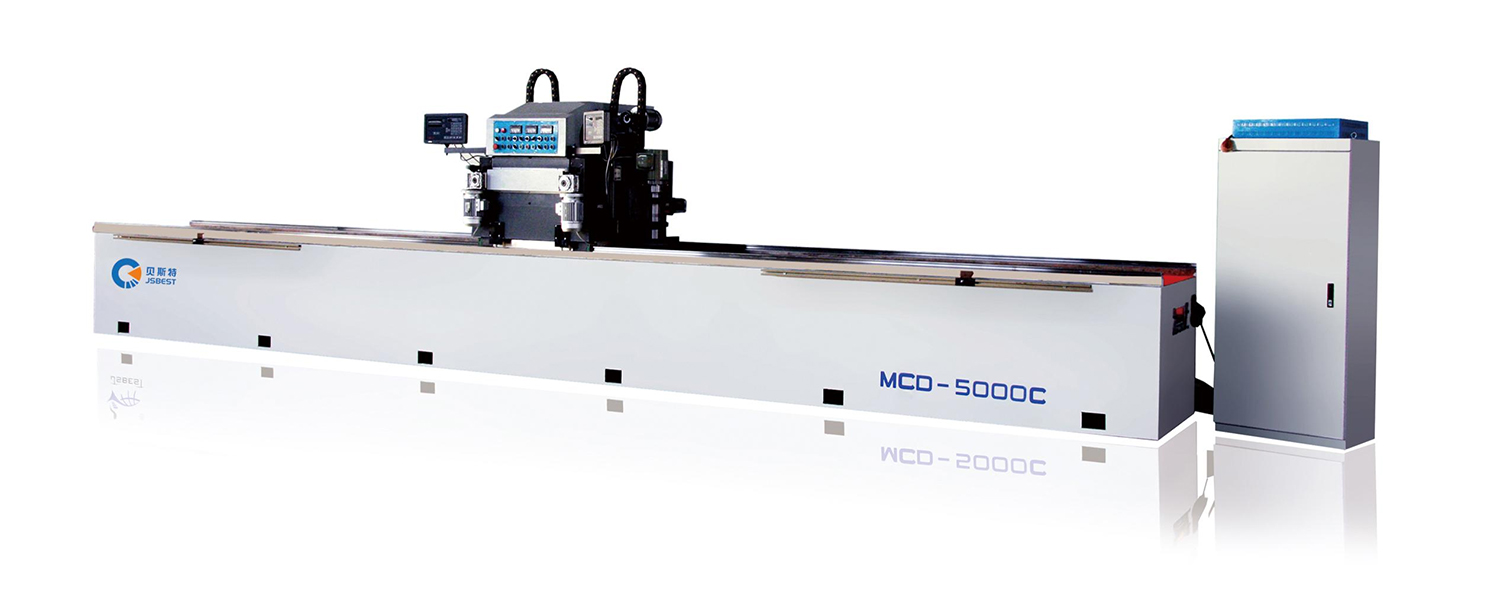

MCD-C Automatic Scraper Grinding Machine

MCD-C scraper grinder adopts advanced German grinder technology and is made of high-quality steel. It is professional equipment for grinding all kinds of scraper and steel strips. It has the characteristics of a compact structure, easy operation, stable operation, low noise, and high grinding precision.
The machine adopts the pull type, and rotatable transmission structure, the grinding speed can be adjusted, and the linear speed is uniform.
The machine is equipped with imported high-precision motorized spindles to ensure grinding accuracy.
The grinding angle of the machine is controlled in any range of 0-90° and the minimum feed is 0.001. The integrated position of the x-axis and y-axis has a digital display device to control the feed accuracy.
The machine adopts extensible telescopic wheel control to ensure the convenience of loading and unloading.
The machine is equipped with a special worktable and a floating vacuum clamping device to ensure that the grinding efficiency and accuracy meet the design requirements.

Get A Quote Play the video

No previous article MCD-K CNC Scraper Grinder Machine(Winding Continuous Grinding)

Detail Parameters Get A Quote

Grinding blade	Length	mm	3500-12000
Grinding blade	Width	mm	≤550
Electromagnetic Worktable	Width	mm	125-200
Electromagnetic Worktable	Angle	°	±90°
Grinding motor (left)	Power	KW	4.0
Grinding motor (left)	Rotating speed	r/min	1400
Grinding motor (right)	Power	KW	2.2/1.5
Grinding motor (right)	Rotating speed	r/min	2800-6000
Grinding wheel	Diameter	mm	200-150
Grinding head frame	About	m/min	1-20
Grinding head frame	Power	KW	1.1
Equipment dimensions	Length	mm	Grinding length +2500
	Width	mm	1300
	Height	mm	1600

MCD-C SCRAPER GRINDER (LINEAR GRINDING)

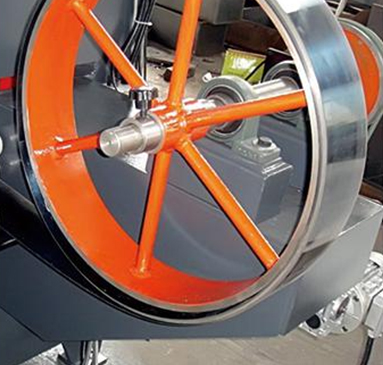

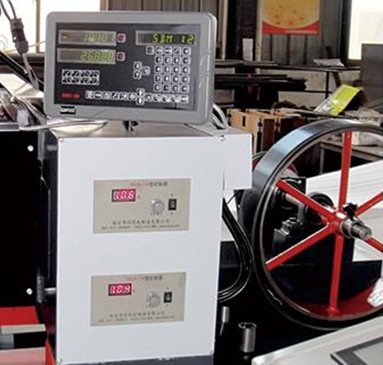

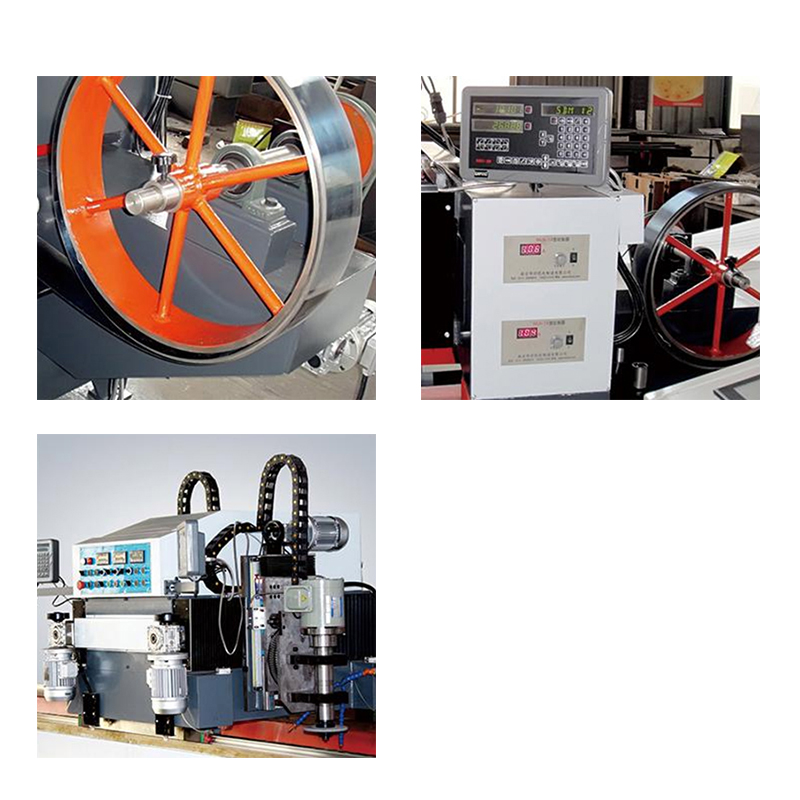

Retractable wheel	Console	Special high-speed grinding head

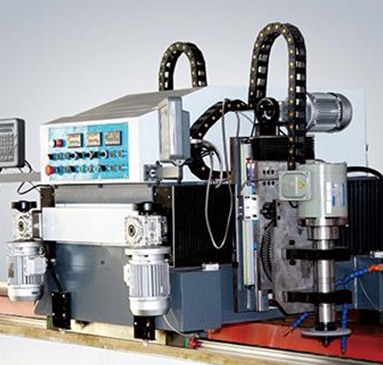

Adjustable retracting and releasing wheel, stable operation	High precision grinding ensures the grinding accuracy	Double-head grinding, grinding straightness ≤0.015mm/m

Certificate

Best always adheres to rigorous, scientific, innovative, and sincere principles. It strictly controls every quality detail and strives to ensure that every product is of high quality. The company has obtained ISO9001 quality system certification, CE certification, and product export licenses, and it has the right to engage in the import and export business.

ABOUT US

35 Years of Knife Sharpening Machine Manufacturing

Jiangsu Best CNC Machinery Co., Ltd., with a 35-year history of manufacturing sharpening machines, we are Custom MCD-C Automatic Scraper Grinding Machine Manufacturer and OEM MCD-C Automatic Scraper Grinding Machine Company, specializes in producing sharpening machines for various industries such as tool machinery, papermaking, printing, woodworking, textiles, fibers, food, forestry, and plastics. It is the largest professional sharpening machine production base in China and is responsible for drafting national standards for sharpening machines. The company has a professional and efficient team, an engineering and technical research center, and strong capabilities in research and development, processing, testing, assembly, and equipment installation and commissioning.
The company always adheres to market demand-oriented and customer-centric principles. It produces various large and medium-sized precision grinding machines, such as MDD-K CNC knife sharpening machines, MYD-K CNC circular knife sharpening machines, and MDD-F heavy-duty grinders, and MCD-C Automatic Scraper Grinding Machine, with basic accuracies up to 0.02mm. Especially, the company's latest developed MDD-G ultra-precision grinder can achieve an accuracy of ±0.005mm/m.
