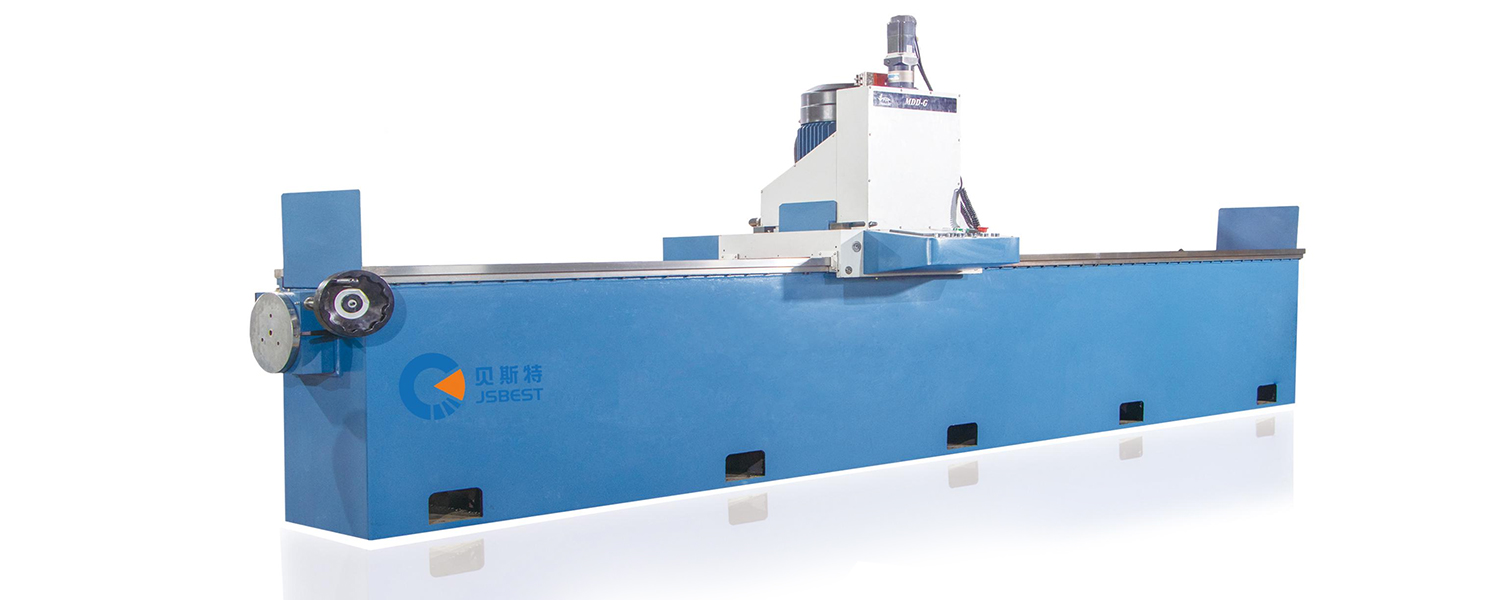

MDD-G Ultra-Precision Knife Grinding Machine

• The whole machine adopts a high-strength gantry-type welding structure, with a solid and compact overall structure, small floor area, and exquisite style; the bed adopts the inner cavity structure with anti-distortion and anti-vibration function, which eliminates the internal stress of the bed after heat treatment; the cooling liquid conveying structure with wide use time can quickly discharge the cooling liquid from one end of the machine, which is convenient for cleaning the machine bed; all operations are integrated in the On the panel.
• Grinding head left and right: grinding head frame automatic round-trip speed control, frequency conversion drive, helical gear teeth not drive, stepless round-trip speed change: 0.02-20m/min, there are different special speeds for cemented carbide cutter, high-speed steel cutter, and ordinary blade.

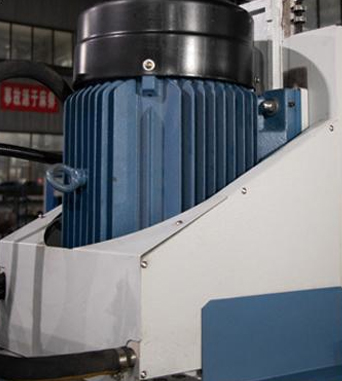

• Up and down of grinding head: the feed rate of the automatic grinding head is 0.005-0.2mm. The total feed rate and single feed rate can be set. The automatic feed rate is accurate and stable. When grinding to zero position, the feed rate will stop automatically and the smooth knife grinding head can rise and fall quickly through a special servo motor.

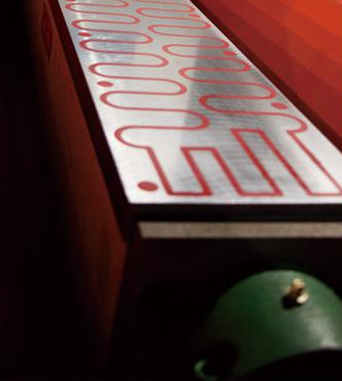

• Rotary electromagnetic sucker worktable adopts high-quality copper coil, S-shape distribution, strong and uniform suction, and high stability.
• The guide belt adopts the reverse tension steel inlaid rectangular guide rail, which is convenient to replace, to ensure that the accuracy is not affected by the wear of the guide belt.
• The electrical system adopts a Siemens control module. According to the structural characteristics of our knife grinder, we strictly follow the technical requirements of generic cabling to improve the quality and stability of the system and circuit.
• The design of the operation interface is simple and practical, and the humanized design makes the user experience very good.
